feature: Add invocation request hooks

[lzchen]

Description

Fixes #

---

From talking to @Hazhzeng , we want to be able to execute custom logic in a customer's function, especially when it comes to reading/modifying the context before the request is made. This PR adds hooks for before and after the handling of the invocation request.

An example using OpenCensus AzureExporter which exports telemetry to App Insights. This is in a normal HTTPTrigger function.

import json
import logging
import requests

import azure.functions as func
from azure_functions_worker.extensions import register_before_invocation_request, register_after_invocation_request
from opencensus.ext.azure.trace_exporter import AzureExporter
from opencensus.trace import config_integration
from opencensus.trace.samplers import ProbabilitySampler
from opencensus.trace.tracer import Tracer
from opencensus.trace import execution_context
from opencensus.trace.propagation.trace_context_http_header_format import TraceContextPropagator

config_integration.trace_integrations(['requests'])

exporter = AzureExporter(instrumentation_key='<your-ikey-here>')

def callback(context):
    print("TRACEPARENT: " + context.trace_context.Traceparent)
    span_context = TraceContextPropagator().from_headers({"traceparent": context.trace_context.Traceparent, "tracestate": context.trace_context.Tracestate})
    # Create a tracer using the current traceparent passed in from the context in the callback
    tracer = Tracer(span_context=span_context, exporter=exporter, sampler=ProbabilitySampler(1.0))
    context.tracer = tracer #  < -- modify the context by passing in a tracer

def callback2(context):
    print("DONE")

register_before_invocation_request(callback)
register_after_invocation_request(callback2)

def main(req: func.HttpRequest, context: func.Context) -> func.HttpResponse:
    tracer = context.tracer
    execution_context.set_opencensus_tracer(tracer)  # < -- sets the passed in tracer as the current tracer
    with tracer.span("parent"):
        response = requests.get(url='http://example.com')
    return json.dumps({
        'method': req.method,
        'ctx_func_name': context.function_name,
        'ctx_func_dir': context.function_directory,
        'ctx_invocation_id': context.invocation_id,
        'ctx_trace_context_Traceparent': context.trace_context.Traceparent,
        'ctx_trace_context_Tracestate': context.trace_context.Tracestate,
    })

In the above code, the context is passed through these hooks and made available to the callback functions. Within the callbacks, OpenCensus SDK treats the context as the parent context, creates a new tracer with this context as the parent, and sets this tracer to be the one that is used currently (execution_context.set_opencensus_tracer(tracer)). Then any custom dependencies that will be tracked using Opencensus SDK (like response = requests.get(url='http://example.com'), will be connected with the current context within the functions environment.

PR information

• The title of the PR is clear and informative.
• There are a small number of commits, each of which has an informative message. This means that previously merged commits do not appear in the history of the PR. For information on cleaning up the commits in your pull request, see this page.
• If applicable, the PR references the bug/issue that it fixes in the description.
• New Unit tests were added for the changes made and CI is passing.

Quality of Code and Contribution Guidelines

• I have read the contribution guidelines.

[lzchen]

/azp run

[azure-pipelines]

No pipelines are associated with this pull request.

[anthonychu]

This is a good idea, but wondering if there should be a discussion in this repo about how this is implemented. (if the issue exists, please link to it, would love to take a look)

Specifically interested in examples of how these callbacks are registered, and whether there was any discussions on pros/cons compared to a middleware/pipeline model.

We also had asks for this in other languages, so it feels like there might be a broader discussion here to ensure the right scenarios are covered and see if there's a possibility to create a consistent approach.

[lzchen]

@anthonychu
There isn't an issue that currently exists for this. There is an internal email thread that proposes the idea (but not any implementation details) by @Hazhzeng and I. We need this feature on the monitoring team to be able to hook on with our SDKs and I took a stab at it to expedite the discussions.

@markwolff is implementing this on the Node side and we are essentially doing the same thing. What would you recommend for next steps if we want to get this feature in ASAP?

[anthonychu]

@lzchen OK so this is internal to the workers and it's specific to supporting App Insights correlation and is not something that's exposed to the customer? If that's the case, I don't have any concerns.

[Hazhzeng]

Hi @lzchen, thanks for making the PR, overall it looks good.
Could you update the PR description and give us a code example on how does AppInsight integrate with the extension interface? (e.g. register_before_invocation_request and clear_before_invocation_request). It would be great if you can explain it in a few sentences.

[lzchen]

@Hazhzeng
Updated the PR description with an example and info on how this lights up our correlation scenario.

[vrdmr]

@Hazhzeng - In the example, I can see the following -

from azure_functions_worker.extensions import register_before_invocation_request, register_after_invocation_request

• Would this mean that the customer needs to add azure_functions_worker to the requirements.txt?

/cc @lzchen

[Hazhzeng]

@vrdmr - Well spotted

The customer writing the Azure Functions code shouldn't need to import the azure_functions_worker, but the library writing the extension will need to do it. I would expect the appinsight will publish a separate library and wrapping the opencensus (e.g. azure-functions-appinsight) and place the initialization code into it. So that the customer only need to import azure-functions-appinsight.

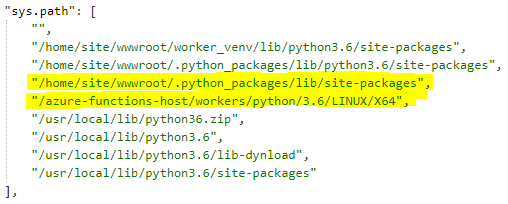

But this still introduces an issue since Linux Consumption SKU prioritizes the customer sys.path over the Azure Functions Worker sys.path. This has a potential to trigger the backward-compatibility issue like #729 since azure-functions-appinsight will also introduce an installation of azure_functions_worker -> grpcio, grpcio-tools -> protobuf.

I think to resolve this issue from the root, we do need to fork the grpcio (Apache-2.0), grpcio-tools (Apache-2.0) and protobuf (license) library from google. I consider other alternatives but none of them actually solve the issue.

1. If we try to remove the azure_functions_worker library in remote build, we still don't have control on grpcio, grpcio-tools and protobuf dependent libraries (e.g. say if we remove grpcio, grpcio-tools and protobuf if customer define azure_functions_worker in requirements.txt, this will break customers using tensorflow since it also depends on grpcio and grpcio-tools).

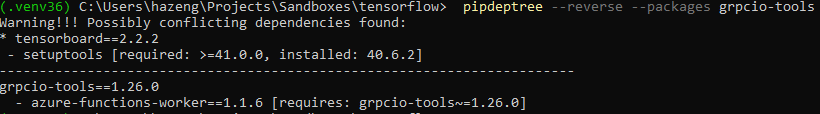

2. Use pipdeptree to resolve grpcio-tools dependent libraries and remove them only if used by azure_functions_worker. This is a generally safer solution, but the oryx build does not generate virtual environment and thus the packages cannot be analyze correctly.

3. Load azure_functions_worker from customer packages. This is dangerous since we have no idea which customer brought old worker into function app. Enabling this will break the current behavior in their function app and they will lose all the bug fixes and update features.

@lzchen - Sorry, I should've caught this much earlier when planning the change. We need to solve this potential backward-compatibility issue before releasing this change, will reset my review.

[lzchen]

@Hazhzeng

Any updates on this?

[Hazhzeng]

Hey @vrdmr,

I think we should continue merge this PR since we introduces PYTHON_ISOLATE_WORKER_DEPENDENCIES flag.
If the customer runs into the protobuf issue. We can just simply ask them to turn on the feature flag for mitigation.

[vrdmr]

Sounds good @Hazhzeng.

@Hazhzeng/@lzchen - Is there a way to test this end to end? We don't need to block the PR for the E2E, but can be added post this PR. Your thoughts?

[AnatoliB]

@anthonychu

@lzchen Leighton Chen FTE OK so this is internal to the workers and it's specific to supporting App Insights correlation and is not something that's exposed to the customer? If that's the case, I don't have any concerns.

I'm a bit confused by this. From the description and the usage sample, my impression is that this is indeed a feature exposed to the customer. Whether we document/advertise this or not, we are going to expose the register_before_invocation_request and register_after_invocation_request functions, so customers can and will start depending on them. Is this correct?

I'm not saying we shouldn't be doing this. But we need to be aware of this, and also consider consistency with other languages. Also, are we going to document this?

[lzchen]

@vrdmr

@Hazhzeng/@lzchen - Is there a way to test this end to end? We don't need to block the PR for the E2E, but can be added post this PR. Your thoughts?

An e2e test could be created to light up the scenario of connecting custom dependencies via Opencensus with other services yes. I agree this can be added after this PR.

[lzchen]

@AnatoliB

Whether we document/advertise this or not, we are going to expose the register_before_invocation_request and register_after_invocation_request functions, so customers can and will start depending on them. Is this correct?

Good question. I'm not sure about the functions worker guidelines for not exposing methods to the user (in Azure monitor, we simply make the methods protected and it implies to users that methods are not exposed in our API). Would this be sufficient enough? It is difficult (especially a language like Python) to completely prevent users from using this.

also consider consistency with other languages.

This feature has already been implemented in nodejs, however the methods are marked as private.

Also, are we going to document this?

If this functionality is not being exposed to customers, do we have to document this?

[vrdmr]

@Hazhzeng @lzchen - I don't know the internal details or discussions of the feature, but wouldn't a function.json would have been a better approach for this? To make the contract clearer for all the languages?

My issue (not strong though) is still with this design choice - to import this - as this isn't the convention and this would start new precedence.

from azure_functions_worker.extensions import register_before_invocation_request, register_after_invocation_request

Can you explain an example app - I am assuming azure_functions_worker would be added to the requirements.txt and then using the extensions view.

[lzchen]

So the scenario in which we are trying to light up is that incoming requests to the user's function won't be correlated with dependency calls made within the user's function when collecting telemetry via Opencensus. Currently, our workaround is to tell users to connect the telemetry manually by setting the used tracer (Opencensus uses a tracer object to enable distributed tracing), into the passed in context that is received in the function header: def main(req: func.HttpRequest, context: func.Context) -> func.HttpResponse: as well as extracting the context from the headers.

In order to not have to have the user call this manually in their functions app, we have discussed implementing the ability to attach function hooks in the functions worker, which can run code before/after running a user's function. With this, we can run the "connecting traces" logic right before the user's function is run as shown in the example in the PR description.

The example above simply shows how this can be done in code. It is not what we expect the customers to do because we will be planning on adding this "hook" logic (callback) in the Opencensus code upon initiation of the AzureExporter. This means that Opencensus will take a dependency on azure-functions-worker, attach a callback function with the hook on initiation and users will only have to manually set the tracer to be the current tracer in their functions app.

[AnatoliB]

@lzchen After this PR is merged, what and how is going to invoke register_before_invocation_request and register_after_invocation_request? From the description and the sample, my impression is that this is going to be up to the function app code (which makes this a feature available to the customer). If you don't intend to make app authors do that, how is this supposed to happen? Are you going to clone and modify the worker (that would explain everything)? Are we expecting another PR that will actually invoke these from the worker code?

[vrdmr]

Please add a function test in the test_http_functions file with this approach, to get a more complete test.

[vrdmr]

Please make BEFORE_INVOCATION_REQUEST_CALLBACKS and AFTER_INVOCATION_REQUEST_CALLBACKS as private variables itself rather than raw strings here.

Also - Any specific reason for the long names here? Would this be better?

BEFORE_INVOCATION_CALLBACKS
AFTER_INVOCATION_CALLBACKS

[vrdmr]

For all the functions in here, please add py-doc strings.

def function():
  """Doc here
  """

[vrdmr]

Same comment as above for PyDocs.

Please add a single line for each test to describe what the test is doing.

[AnatoliB]

@lzchen Please help me understand this, I might be missing some context. I'm still not clear on how it is not exposed to customers. I thought the sample code in the description demonstrated intended usage. So, after this PR, any Python function app can take advantage of this feature by invoking register_before_invocation_request and register_after_invocation_request. Furthermore, preventing the customer from invoking these would defeat the purpose, as your sample in the description will stop working. Is this correct?

In the nodejs implementation you are referring to, registerBeforeInvocationRequest and registerAfterInvocationRequest seem to be public, probably for exactly the same reason.

[vrdmr]

Please change the names of the functions and other variables to - Using pre and post instead of before and after respectively. Pre- and Post- make it clearer of what they are supposed to do.

get_pre_invocation_request_callbacks
get_post_invocation_request_callbacks

[vrdmr]

@lzchen @Hazhzeng - How is this exposed to the user?

[vrdmr]

Specifically - is this a USER log or System log? I think its system and won't be shown to the user. @Hazhzeng could you please confirm.

[Hazhzeng]

This logger is a system log. Yes, it won't be shown to user.

[vrdmr]

Same here.

[Hazhzeng]

Yeah same, this is system log. For extension to expose the log to users, they need to define a new logger without the azure_functions_worker prefix.

import logging

logger = logging.getLogger('SomeExtension')
logger.info('xxx')

[lzchen]

@AnatoliB
Yes I can see why the example can be confusing. Please look at this comment.

The intention was to simply light up our Azure monitor scenario and make things simpler for functions customers to obtain connected traces without having to manually add too much code. It is not really within the scope of this PR to try to add new functionality. Speaking to @Hazhzeng it was just a nice addition to have to allow users to be able to do this and I believed it to be a simple addition. If you think that exposing this to customers adds too much functionality, and if the customers are okay with manually instrumenting their code in their functions app then that could be brought into the discussion.

[AnatoliB]

@lzchen I like the feature, I believe it is useful, and the implementation looks good to me. But I keep reading two things that look mutually-exclusive to me:

1. "This is just a worker implementation detail." In this case, Functions users cannot take (or not take) a dependency on this, no documentation is required, consistency with other languages is irrelevant.
2. "This is a useful and simple feature." In this case, we should review it from this perspective: consider consistency with other languages, documentation, etc., and make sure we keep supporting this feature moving forward. I'm not saying this PR is not good enough for these purposes, and chances are we'll just take it as is. But we need to know.

I think we need to choose one, it cannot be both :-)

[lzchen]

@AnatoliB
Got it. I think we would like to take the (2) approach, in which case I will fix the PR to adhere to the feature guidelines.

[AnatoliB]

@anthonychu Since we agreed that this is actually a customer-facing feature, do you want to review it from this perspective?

UPDATE: We've discussed this offline, and I realized that the Node.js implementation is different. As opposed to this PR, it does not expose a customer-facing feature, so keeping callbacks consistent is pointless, and the question below is irrelevant.

I have a question on consistency with the Node.js implementation. While comparing this PR with Node.js implementation, I noticed that the callback functions in the Node.js case look like this:

type InvocationRequestBefore = (context: Context, userFn: Function) => Function;
type InvocationRequestAfter = (context: Context) => void;

Does anybody know what is the story behind userFn? In the Python case, only context is passed in both cases. Do we have a reason to follow the same pattern?

[lzchen]

Closing in favor of #815
